Good price online

products details

Home > Products >
Automatic Voltage Regulator AVR
>
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
All Category

Excavator Engine Parts

Diesel Engine Piston

Diesel Engine Crankshaft

Diesel Engine Turbocharger

Diesel Engine Starter

Cummins Spare Parts

Diesel Engine Filters

Excavator Solenoid Valve

Excavator Seats

Engine Cylinder Head

Engine Water Pump

Engine Gasket kit

Engine Fan Belt

Oil Cooler Cover

Excavator Bearing

Excavator Gear

DEUTZ Engine Parts

MAZ Parts

Automatic Voltage Regulator AVR
Contact Us
Miss. Joyce
joyce@taishuoparts.com
86-13178823474
Contact Now
ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
  • Name
  • Name
  • Name

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller

Brand Name: Hi-TTS
Model Number: ESD5111
MOQ: 1 pcs
Price: Negotiation
Payment Terms: T/T, Wechat ,Alipay
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
SPEED CONTROL UNIT
Engine:
ESD5111
MOQ:
1 Set
Delivery Time:
3-5 Work Days
Price:
Negotiation
Qaulity:
Top Quality
Payment Term:
L/C, D/A, D/P, T/T, ,
Packing:
Neutral Package
Voltage::
12V, 24V
Specifiion::
18*17.5*5cm
Supply Ability:
5000/pcs per month
Highlight:

ESD5111 Speed Control Unit

,

12V Speed Control Unit

,

24V Speed Governor Controller

Product Description

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller



Quick Details:




Speed Range:1KHz-7.5KHz


Thermal Stability:Max ±1%


IDLE Adjustment:160 ± 20Hz ~ rated speed of 95%


External Speed Adjustment:± 200Hz (external 1KΩ) AUX.


Input Sensitivity:148Hz / 1V., ± 10Hz., Impedance 1MΩ START FUEL.


Adjust:160 ± 20Hz ~ 70% of rated speed RAMP.


Time Adjustment:1.5 ~ 20Sec. 10V.


Output Current:Maximum 20mA environment


Operating Temperature Range:-40ºC ~ 85ºC


Operating Humidity Range:Max 95%


Save Temperature:-55ºC ~ 90ºC


Shock:20-100HZ 500mm/Sec


Voltage:12V and 24V DC battery systems


Ground Polarity:negative electrode


Power Consumption:50mA


Actuator Continuous Current:minimum 2.5A; maximum 10A


Speed Sensor Signal:0.5 ~ 120 RMS



Weight: 0.75 kgs

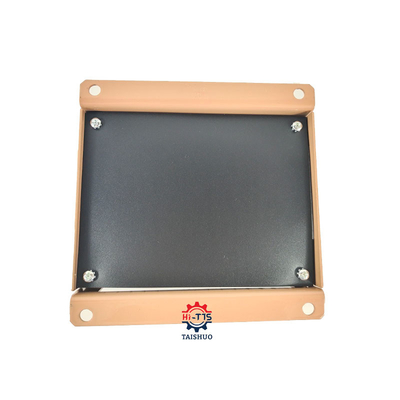

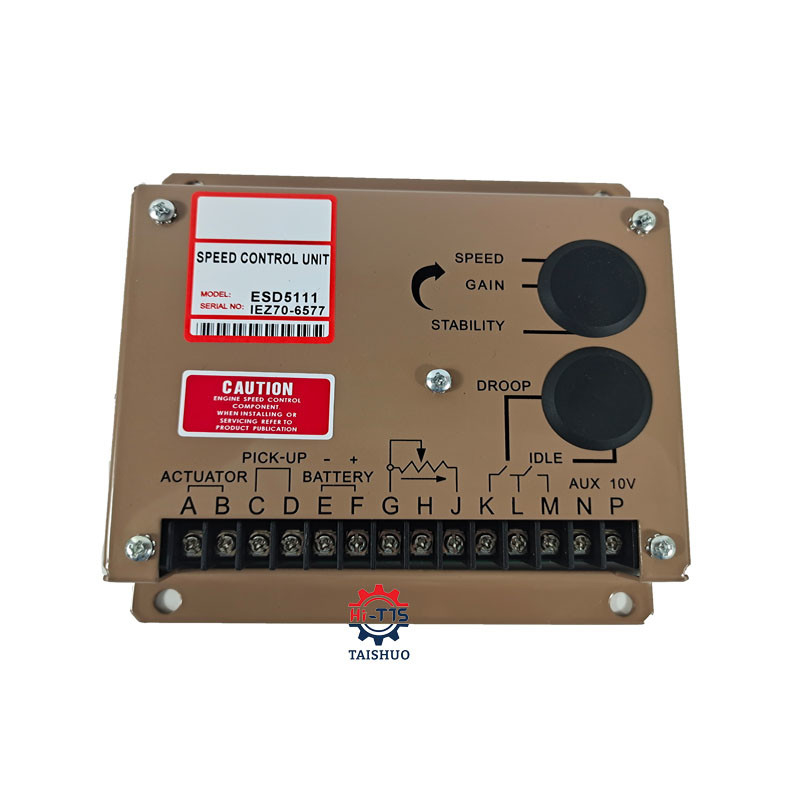

Photo:







ESD5111 Speed Control Unit 12V 24V Speed Governor Controller 0
