Product Details:
|

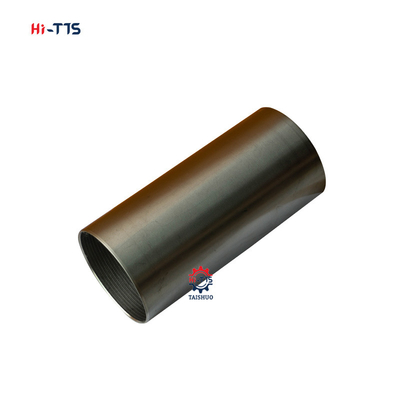

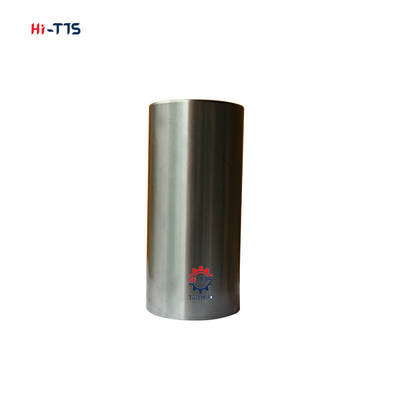

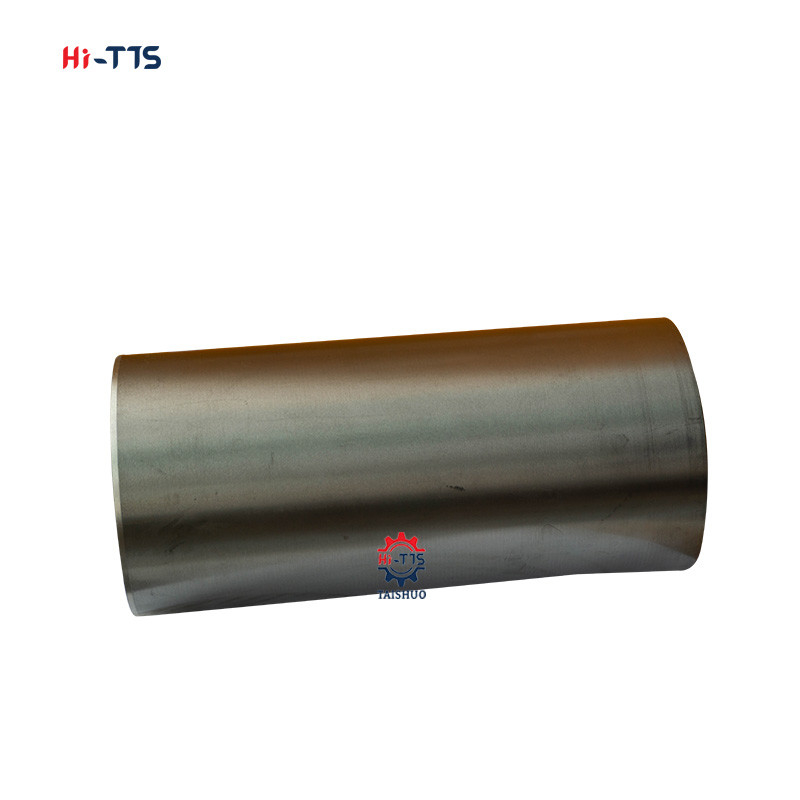

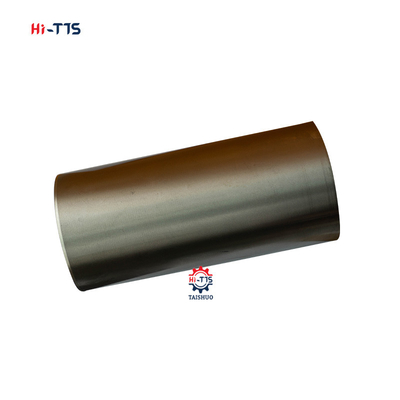

| Part Name: | Cylinder Liner Cylinder Sleeve | Model: | Excavator E323D E320E |
|---|---|---|---|
| MOQ: | 6 Piece | Packaging: | Carton |
| Diameter: | 102mm | Color: | Silvery |
| Weight: | 1.5kg | Engine: | C6.6 C7.1 |
| OEM No: | 111-1815 7C-6208 | Material: | Steel |
| High Light: | C7.1 Cylinder Liner Cylinder Sleeve,1111815 Cylinder Liner Cylinder Sleeve,7C-6208 Excavator Engine Parts |
||
What is a cylinder liner?
It is a cylinder that is fitted to the engine block to form the cylinder, and is one critical function part that forms the engine interior.
In Japan they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
Cylinder liner in engine
A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine. This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
What are the 3 main types of cylinder liners?
Three basic types of liners are used: hot, dry and finned. The purpose of each type is to protect the piston from heat and impurities using slightly different methods. Cylinder liners are expensive, precisely manufactured products and are primarily purchased from specialty shops.
| Model | C6.6 C7.1 |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 111-1815 7C-6208 |
| Material | Steel |
| Weight | 1.5kg |
| Diameter | 102mm |
| Application: | Excavator E323D E320E |
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
| MODEL | PART NO. | SIZE:(in'out'total) |
| 4D92 | 6140-21-2211 | |
| 4D94 | 6144-21-2211 | |
| 4D95 | 6207-21-2110 | Φ94.2*Φ98*180 |
| S4D95 | 6207-21-2121 | Φ94.2*Φ98*180 |
| 6D95 | 6207-21-2110 | Φ95*Φ98*180 |
| 6D102 | 6736-29-2140 | Φ102*Φ105*200 |
| S4D105 | 6130-22-2213 | Φ105*Φ127*228 |
| S6D105 | 6136-21-2210 | Φ105*Φ127*223 |
| S6D110 | 6138-21-2210 | |
| 6D107 | Φ106*Φ110*203 | |
| S6D108.F | 6222-21-2210 | 108*111.3*219.5 |
| 4D120 | 6110-21-2212 | |
| 4D130 | 6115-21-2211 | |
| S6D110 | 6138-21-2210 | Φ110*Φ115*225 |
| S6D125 | 6150-21-2221 | Φ125*Φ153*256 |
| S6D140 | 6211-21-2210 | |
| S6D155 | 6128-21-2215 | Φ155*Φ184*327 |
| S6D170 | 6162-23-2210 | |
| D6D | Φ97*Φ101*104.8 | |
| D6D+ | Φ97*Φ102*104.8 | |
| D6D.F | Φ98*Φ101*104.8 | |
| D6E | Φ97*Φ101*188 | |
| D6E+ | Φ97*Φ102*188 | |
| D6E,F | Φ98*Φ101*188 |
