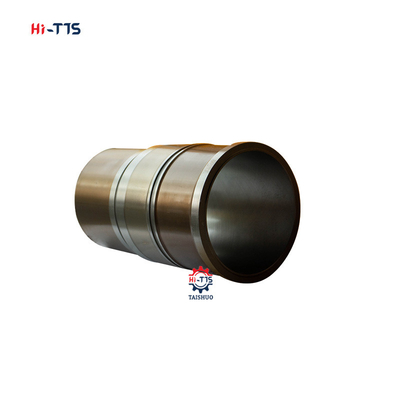

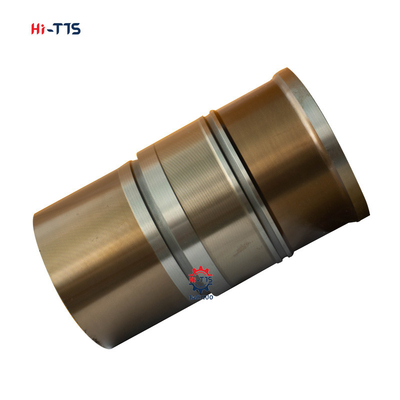

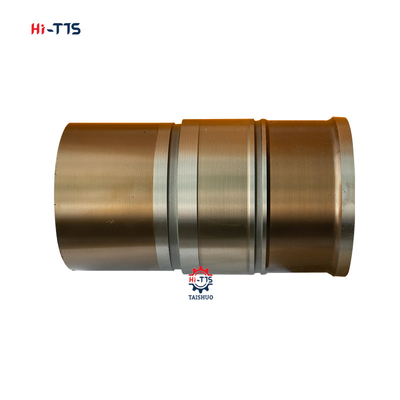

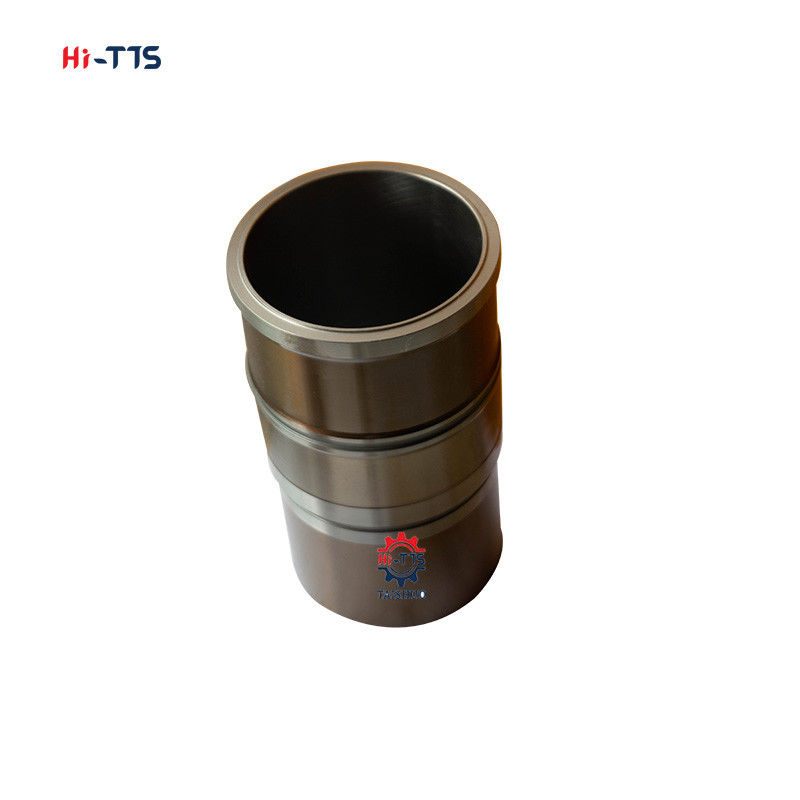

Product Details:
|
| Part Name: | Cylinder Liner Cylinder Sleeve | Model: | Excavator E336D E330C |
|---|---|---|---|
| MOQ: | 6 Piece | Packaging: | Carton |
| Diameter: | 112mm | Color: | Gold |
| Weight: | 4.5kg | Engine: | C9 |
| OEM No: | 1903562 385-7276 190-3562 | Material: | Steel |
| High Light: | E330C Excavator Engine Parts,1903562 Excavator Engine Parts,Cylinder Liner 1903562 |
||
What is a cylinder liner?
It is a cylinder that is fitted to the engine block to form the cylinder, and is one critical function part that forms the engine interior.
In Japan they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
Cylinder liner in engine
A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine. This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.
How does a cylinder liner work?
A cylinder liner provides a smooth sliding surface that allows the reciprocating motion of a piston. The friction resistance offered by the inner walls of the liner is negligible; this allows the piston rings to slide over the inner walls of the liner.
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
| Model | C9 |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 1903562 385-7276 190-3562 |
| Material | Steel |
| Weight | 3.5kg |
| Diameter | 112mm |
| Size | Bore :112 mm/ Height: 222 mm |
| Application: | Excavator E336D E330C |
| Single package size: | 36X23X23 cm |
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
| MODEL | PART NO. | SIZE:(in'out'total) |
| 4D92 | 6140-21-2211 | |
| 4D94 | 6144-21-2211 | |
| 4D95 | 6207-21-2110 | Φ94.2*Φ98*180 |
| S4D95 | 6207-21-2121 | Φ94.2*Φ98*180 |
| 6D95 | 6207-21-2110 | Φ95*Φ98*180 |
| 6D102 | 6736-29-2140 | Φ102*Φ105*200 |
| S4D105 | 6130-22-2213 | Φ105*Φ127*228 |
| S6D105 | 6136-21-2210 | Φ105*Φ127*223 |
| S6D110 | 6138-21-2210 | |
| 6D107 | Φ106*Φ110*203 | |
| S6D108.F | 6222-21-2210 | 108*111.3*219.5 |
| 4D120 | 6110-21-2212 | |
| 4D130 | 6115-21-2211 | |
| S6D110 | 6138-21-2210 | Φ110*Φ115*225 |
| S6D125 | 6150-21-2221 | Φ125*Φ153*256 |
| S6D140 | 6211-21-2210 | |
| S6D155 | 6128-21-2215 | Φ155*Φ184*327 |
| S6D170 | 6162-23-2210 | |
| D6D | Φ97*Φ101*104.8 | |
| D6D+ | Φ97*Φ102*104.8 | |
| D6D.F | Φ98*Φ101*104.8 | |
| D6E | Φ97*Φ101*188 | |
| D6E+ | Φ97*Φ102*188 | |
| D6E,F | Φ98*Φ101*188 |
Q: Do you have your own factory?
A: Yes, we have our own factory and accept light customization, there are multiple cnc machine tools.
Q: When can it be shipped?
A: We will arrange delivery within 2 working days after you pay.
Q: Where do you ship from?
A: For US buyers, we ship from the nearest US warehouse
Q: What can I do if the product does notit my car?
A: Please contact us frist and provide your modelHope you can provide photos of the front of the car. We will provide you with effective and solutions
Q: How to return?
A: We accept refund. You need to send the product retum tothe Alibaba online store within the specified time. We will arrange a refund. Please contact the us in advance before you apply for a refund.
