Product Details:
|
| Part Name: | Cylinder Liner Cylinder Sleeve | Model: | Excavator |
|---|---|---|---|
| MOQ: | 6 Piece | Packaging: | Carton |
| Diameter: | 115mm | Color: | Silvery |
| Weight: | 7kg | Engine: | C9.3 |
| OEM No: | 469-5313 4695313 | Material: | Iron |
| High Light: | Excavator Engine Liner Cylinder Sleeve,4695313 Engine Liner Cylinder Sleeve,115mm Liner Cylinder Sleeve |
||

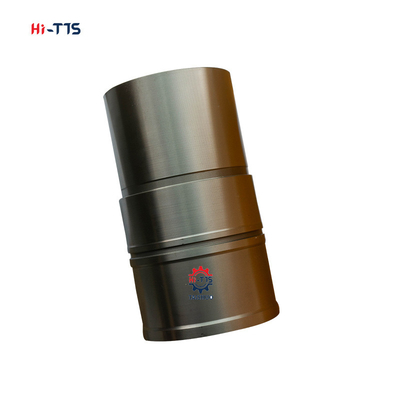

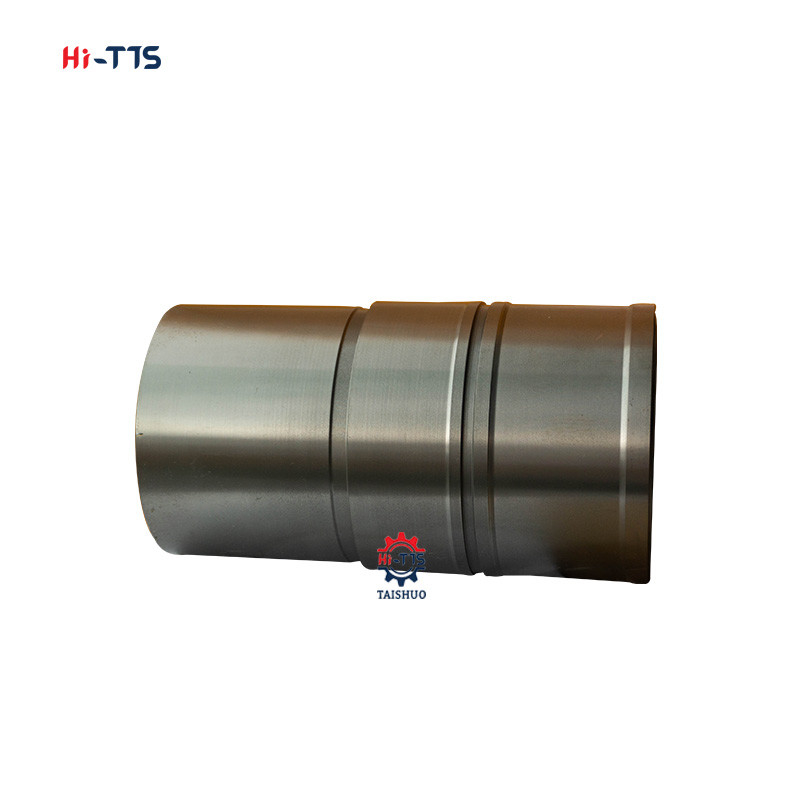

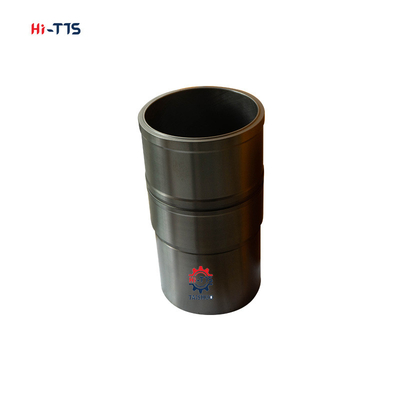

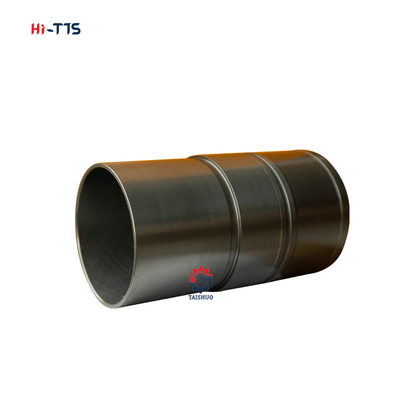

Cylinder liner in engine
A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine. This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.
How does a cylinder liner work?
A cylinder liner provides a smooth sliding surface that allows the reciprocating motion of a piston. The friction resistance offered by the inner walls of the liner is negligible; this allows the piston rings to slide over the inner walls of the liner.
Why use cylinder liner?
The cylinder liner prevents compressed gas and combustion gas from escaping. All that is needed is a cylinder liner that is difficult to replace with the high pressure and high temperature in the cylinder.
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
| Model | C9.3 |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 469-5313 4695313 |
| Material | Iron |
| Weight | 7kg |
| Diameter | 115mm |
| Application: | Excavator |
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
How do you know if your cylinder liner is bad?
Check the cylinder liner for cracks, freeting or scoring. If any crack, fretting or scoring is detected, the cylinder must be replaced with a new one. If this is not the case, continue looking for cavitation erosion on the liner. Erosion results from poor cooling system maintenance.
| MODEL | PART NO. | SIZE:(in'out'total) |
| 4D92 | 6140-21-2211 | |
| 4D94 | 6144-21-2211 | |
| 4D95 | 6207-21-2110 | Φ94.2*Φ98*180 |
| S4D95 | 6207-21-2121 | Φ94.2*Φ98*180 |
| 6D95 | 6207-21-2110 | Φ95*Φ98*180 |
| 6D102 | 6736-29-2140 | Φ102*Φ105*200 |
| S4D105 | 6130-22-2213 | Φ105*Φ127*228 |
| S6D105 | 6136-21-2210 | Φ105*Φ127*223 |
| S6D110 | 6138-21-2210 | |
| 6D107 | Φ106*Φ110*203 | |
| S6D108.F | 6222-21-2210 | 108*111.3*219.5 |
| 4D120 | 6110-21-2212 | |
| 4D130 | 6115-21-2211 | |
| S6D110 | 6138-21-2210 | Φ110*Φ115*225 |
| S6D125 | 6150-21-2221 | Φ125*Φ153*256 |
| S6D140 | 6211-21-2210 | |
| S6D155 | 6128-21-2215 | Φ155*Φ184*327 |
| S6D170 | 6162-23-2210 | |
| D6D | Φ97*Φ101*104.8 | |
| D6D+ | Φ97*Φ102*104.8 | |
| D6D.F | Φ98*Φ101*104.8 | |
| D6E | Φ97*Φ101*188 | |
| D6E+ | Φ97*Φ102*188 | |
| D6E,F | Φ98*Φ101*188 |
Q: Do you have your own factory?
A: Yes, we have our own factory and accept light customization, there are multiple cnc machine tools.
Q: When can it be shipped?
A: We will arrange delivery within 2 working days after you pay.
Q: Where do you ship from?
A: For US buyers, we ship from the nearest US warehouse
Q: What can I do if the product does notit my car?
A: Please contact us frist and provide your modelHope you can provide photos of the front of the car. We will provide you with effective and solutions
Q: How to return?
A: We accept refund. You need to send the product retum tothe Alibaba online store within the specified time. We will arrange a refund. Please contact the us in advance before you apply for a refund.
